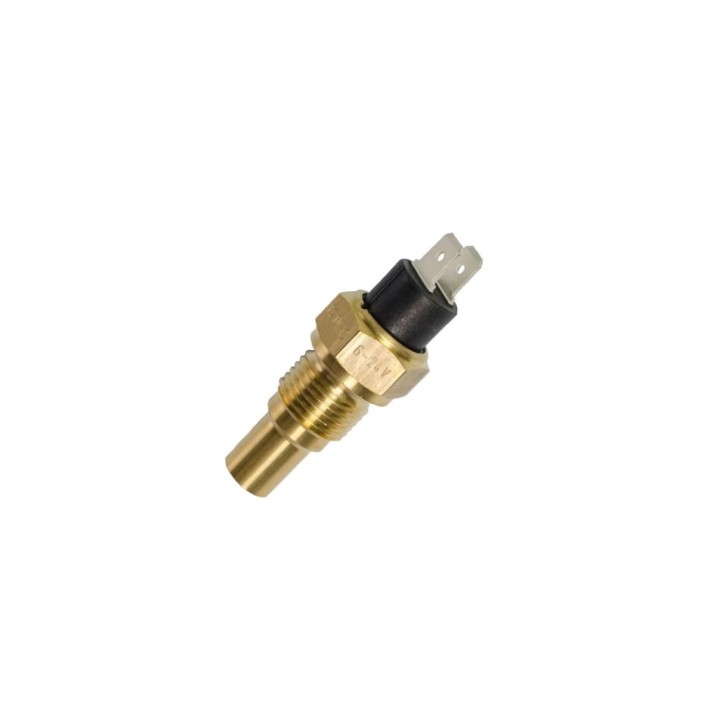

VDO 323-805-001-002 Temperature Sender Insulated +40°c to +120°c Thread 5/8"x18 Unf

VDO Temperature Sender Insulated +40°c to +120°c Thread 5/8"x18 Unf

Part number 323-805-001-002 ·Continental ·Senders
VDO
R1,611.22
No tax

VDO 323-805-001-002 is a coolant temperature sender with a 40-120 °C range.

Also known as VDO number 323-805-001-002C.

Share
Sign in to save lists
IN STOCK at EXTERNAL supplier.
If ordered before 10AM:
DELIVERED in 3-5 business days (main centres)
or 5-7 business days (regional areas or large/heavy items)

Trade account holders pay COD and can qualify for pricing below the online store.

Request a quote Open a trade account
Secure checkout Nationwide delivery Genuine parts 011 568 9948

VDO 323-805-001-002 is a coolant temperature sender with a 40-120 °C range.

  • 6-24 V DC
  • Thread 5/8" -18 UNF-2 A
  • 287.4-22.7 Ω sender resistance

Senders and switches must match the gauge or warning circuit they feed: compare the thread, the resistance range or switch point and the connector with the original unit before ordering.

Part number 323-805-001-002, EAN 4103590690050. Also known as VDO number 323-805-001-002C.

Genuine VDO part, supplied by Omnitronix through Omnipart and delivered across South Africa.

  • Brand
  • Reference
    323-805-001-002
  • In stock
    5 Items
  • EAN13
    4103590690050
  • MPN
    323-805-001-002C

  • Manufacturer
    Continental
  • Product Portfolio
    Switches & Senders
  • Product Family
    Senders
  • Product Group
    Temperature Senders
  • Product Type
    Temperature Sender
  • Warranty
    12 Months
  • Thread
    5/8" -18 UNF-2 A
  • Torque
    20 Nm
  • Operating Voltage
    6 - 24 V DC
  • Weight
    0.4 kg
  • Sensor Signal
    2 Pole Insulated Return
  • Sensor Diameter
    11 mm
  • Temperature Measuring Range
    +40 °C to +120 °C
  • Sender Resistance Range
    287.4 Ω to 22.7 Ω
  • Warning Contact
    No Warning Contact
  • Optional Warning Contact
    VDO A2C59510886 Makepoint Switch
  • Minimum - Maximum Operating Temperature
    -40 °C to +150 °C
  • Temperature Sender Connector
    AMP Male 6.3 x 0.8 mm
  • Sender Element Length + Thread (L)
    29 mm
  • Temperature Medium
    Coolant - Water - Air - Engine Oil - Transmission Oil - Fuel
  • Temperature Range
    +40 °C to +120 °C
