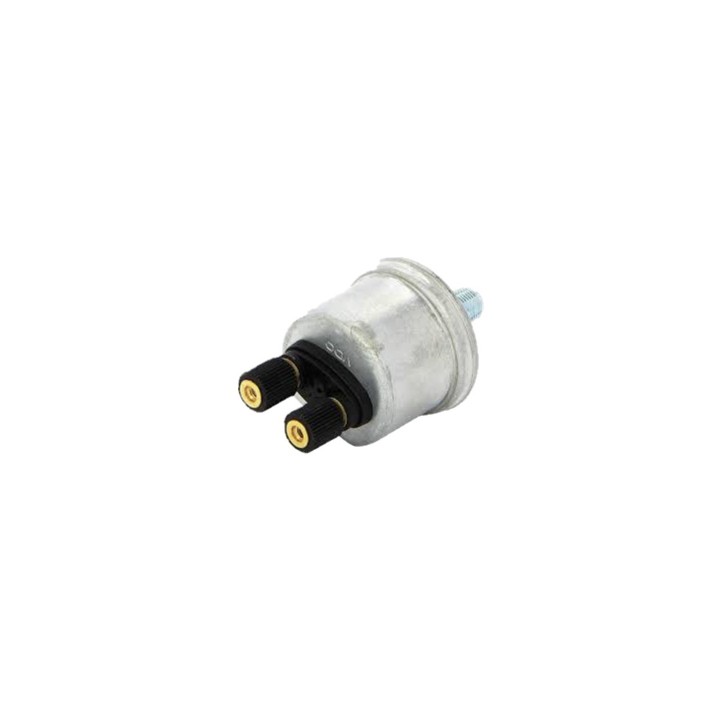

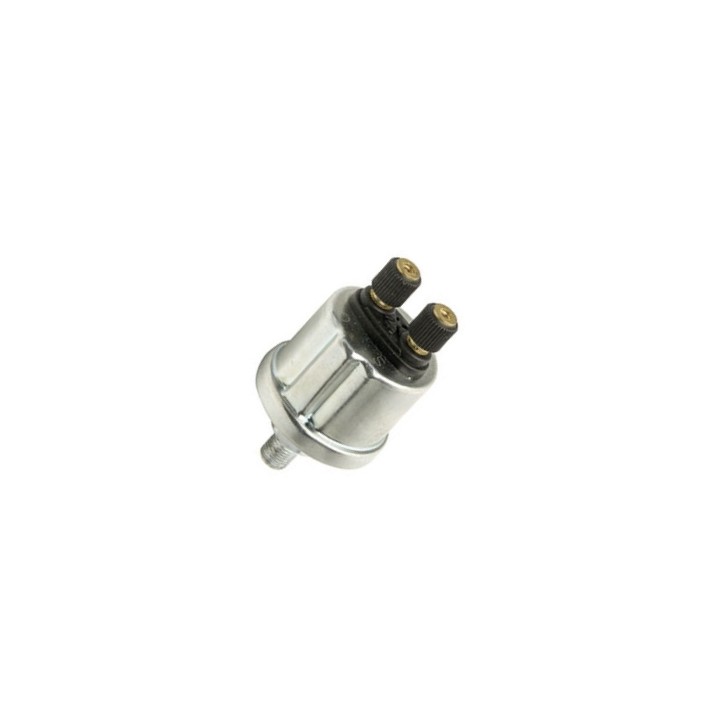

VDO 360-081-030-049C Pressure Sender Switch 0 to 5 Bar 40 kPa Warning Contact Thread 1/8'x27 Nptf

VDO Pressure Sender Switch 0 to 5 Bar 40 kPa Warning Contact Thread 1/8'x27 Nptf

Part number 360-081-030-049C ·Continental ·Senders
VDO
R2,650.22
No tax

VDO 360-081-030-049C is an oil pressure sender with a 0-5 bar range.

Also known as VDO number A2C6252984966.

Share
Sign in to save lists
IN STOCK at EXTERNAL supplier.
If ordered before 10AM:
DELIVERED in 3-5 business days (main centres)
or 5-7 business days (regional areas or large/heavy items)

Trade account holders pay COD and can qualify for pricing below the online store.

Request a quote Open a trade account
Secure checkout Nationwide delivery Genuine parts 011 568 9948

VDO 360-081-030-049C is an oil pressure sender with a 0-5 bar range.

  • 6-24 V DC
  • Thread 1/8" X 27 NPTF
  • Warning contact at 0.40 bar ± 0.10 bar
  • 10-184 Ω sender resistance

Senders and switches must match the gauge or warning circuit they feed: compare the thread, the resistance range or switch point and the connector with the original unit before ordering.

Part number 360-081-030-049C, EAN 4103590949622. Also known as VDO number A2C6252984966.

Genuine VDO part, supplied by Omnitronix through Omnipart and delivered across South Africa.

  • Brand
  • Reference
    360-081-030-049C
  • In stock
    5 Items
  • EAN13
    4103590949622
  • MPN
    A2C6252984966

  • Manufacturer
    Continental
  • Product Portfolio
    Switches & Senders
  • Product Family
    Senders
  • Product Group
    Pressure Senders
  • Product Type
    Pressure Sender/Switch
  • Warranty
    12 Months
  • Thread
    1/8" X 27 NPTF
  • Pressure Range
    0 bar to 5 bar
  • Length Thread + Nut (L1)
    19.5 mm
  • Thread Length (L2)
    11 mm
  • Torque
    30 Nm
  • Maximum Pressure
    30 bar during 2 seconds
  • Operating Voltage
    6 - 24 V DC
  • Weight
    0.71 kg
  • Sensor Signal
    1 Pole Common Ground
  • Sender Resistance Range
    10 Ω to 184 Ω
  • Warning Contact
    0.40 bar ± 0.10 bar
  • Warning Contact Switch Capacity
    Maximum 5 W Non-inductive
  • Warning Contact Features
    Closes With Falling Pressure
  • Warning Contact Connector
    M4 Plastic Knurled Nut
  • Operating Temperature
    : -25 °C to +100 °C
  • Pressure Sender Connector
    M4 Plastic Knurled Nut
  • Pressure Medium
    Oil - Fuel - Air
