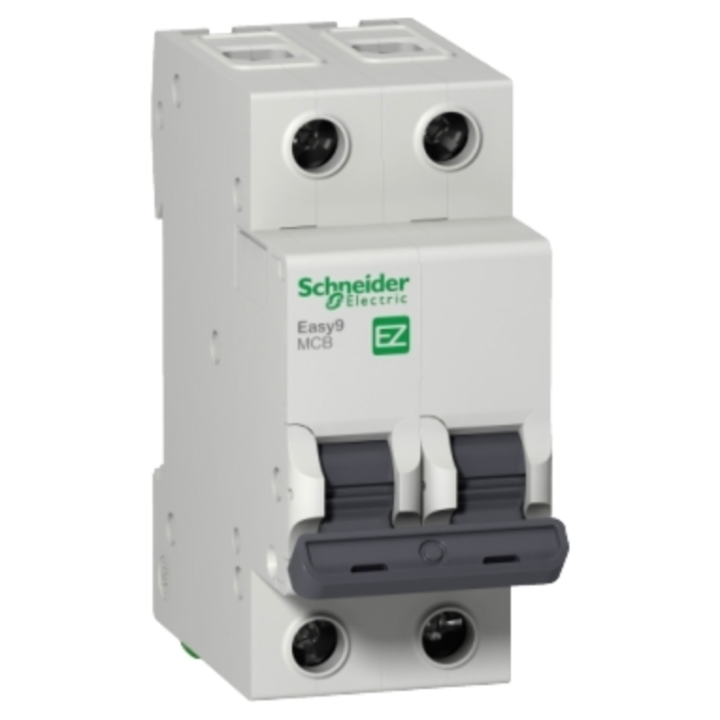

Schneider EZ9F53225 2P 25A 3KA C Curve Breaker Easy9

EZ9F53225 2P 25A 3KA C Curve Breaker Easy9

Part number EZ9F53225
Schneider
R139.10
No tax
This Easy9 product is a low voltage miniature circuit breaker (MCB). It is a 2P circuit breaker with 2 protected poles and 25A In rated current and C tripping curve. The Icu rated short circuit breaking capacity is up to 3kA at 400VAC conforming to EN/IEC 60898-1 standard. It is compliant with IEC
Share
Sign in to save lists
IN STOCK at EXTERNAL supplier.
If ordered before 10AM:
DELIVERED in 3-5 business days (main centres)
or 5-7 business days (regional areas or large/heavy items)

Trade account holders pay COD and can qualify for pricing below the online store.

Request a quote Open a trade account
Secure checkout Nationwide delivery Genuine parts 011 568 9948

This Easy9 product is a low voltage miniature circuit breaker (MCB). It is a 2P circuit breaker with 2 protected poles and 25A In rated current and C tripping curve. The Icu rated short circuit breaking capacity is up to 3kA at 400VAC conforming to EN/IEC 60898-1 standard. It is compliant with IEC 60898-1 standard.

This product has a protection against short circuit and a protection of cable against overloads. It has a fault tripping indication on the front panel by the position of the handle (O-I engraved). This product is dedicated for residential and small commercial buildings.

It has an electrical endurance going up to 4000 cycles and a mechanical endurance going up to 10000 cycles. The Ue operational voltage is 400VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. The operating frequency is 50Hz or 60Hz. It can be mounted on DIN rail for modular installation. Its width is 4 pitches of 9mm.

  • Brand
  • Reference
    EZ9F53225
  • In stock
    5 Items

  • Current Rating
    25 A
  • Poles
    2P
  • Breaking Capacity
    3 kA
  • Tripping Curve
    C curve
