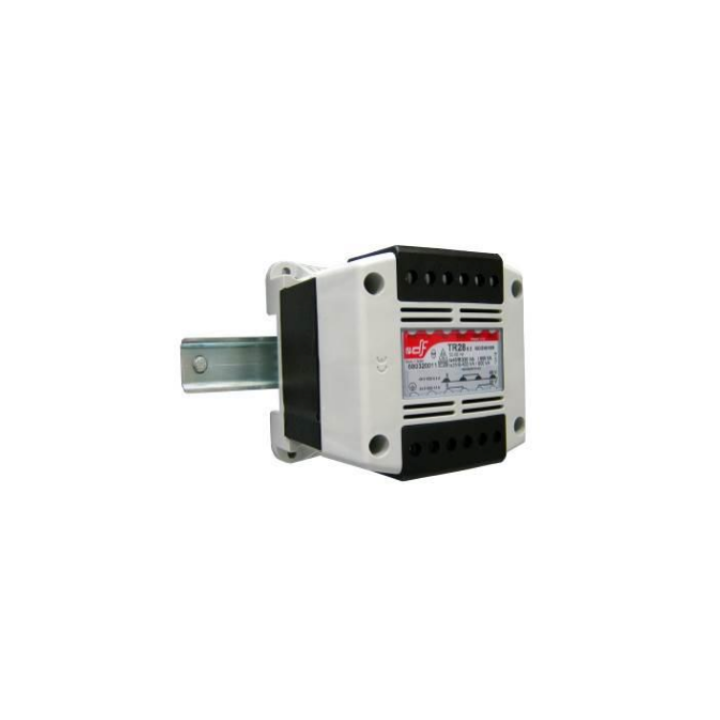

DF BE-ELC-0001390 Control Transformer 680400040 400VA - Secondary Voltage 12 - 24V

Control Transformer 680400040 400VA - Secondary Voltage 12 - 24V

Part number BE-ELC-0001390
DF
R3,249.38
No tax

DF BE-ELC-0001390 Control Transformer 680400040 400VA - Secondary Voltage 12 - 24V.

Primary voltage: 240V - 400V - 525V Control and safety or isolating single-phase transformers supply high instantaneous power for the correct operation of contactors and other control and switchgear. Features: Thermal class: B (130°C) Class: Class I Frequency: 50/60 Hz DIN rail mountable Secondary
Share
Sign in to save lists
IN STOCK at EXTERNAL supplier.
If ordered before 10AM:
DELIVERED in 3-5 business days (main centres)
or 5-7 business days (regional areas or large/heavy items)

Trade account holders pay COD and can qualify for pricing below the online store.

Request a quote Open a trade account
Secure checkout Nationwide delivery Genuine parts 011 568 9948

DF BE-ELC-0001390 Control Transformer 680400040 400VA - Secondary Voltage 12 - 24V.

Primary voltage: 240V - 400V - 525V

Control and safety or isolating single-phase transformers supply high instantaneous power for the correct operation of contactors and other control and switchgear.

Features:

  • Thermal class: B (130°C)
  • Class: Class I
  • Frequency: 50/60 Hz
  • DIN rail mountable
  • Secondary voltages: 12 - 24V
  • Protection degree: IP20 protection (finger safe)
  • Dielectric strength: Primary - secondary > 4.5kV
  • Standards: IEC/EN 61558-1, IEC/EN 61558-2-2 /-2-4 /-2-6
  • Serial-parallel secondary bridge pieces for ease of connection
  • Primary voltages: 240V - 400V - 525V (with regulation taps + and - 20V)
  • High capacity clamp terminals (10 mm2 up to 400VA / 25 mm²up to 1250VA)
  • High flexibility - several primary rated voltages (with regulation taps +20V or -20V)

Datasheet

  • Brand
  • Reference
    BE-ELC-0001390
  • In stock
    5 Items

  • Cable Size
    10 mm²
  • IP Rating
    IP20
