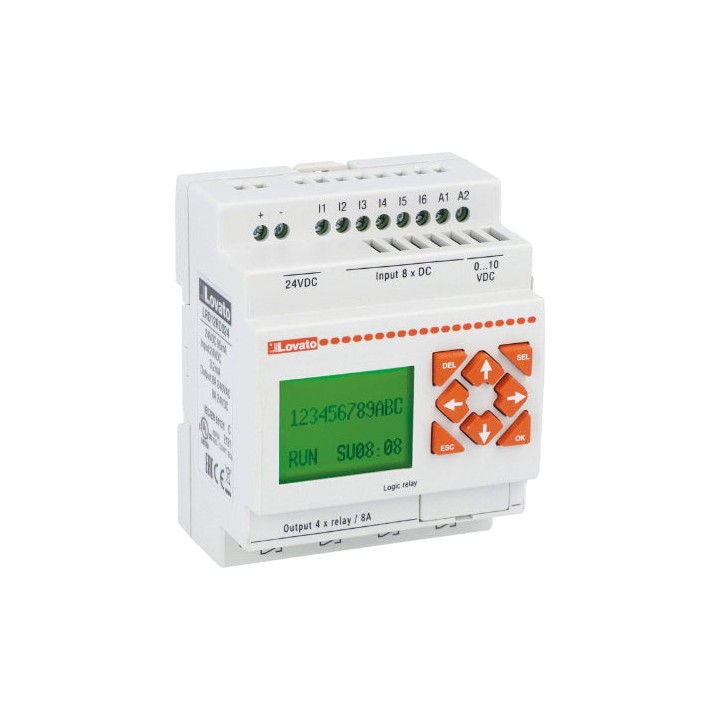

LRD12RD024 Micro PLC 24VDC 8inputs-4outputs

LRD12RD024 Micro PLC 24VDC 8inputs - 4outputs - Intelligent Relay

• Supply - 24VDC
• Inputs - 8
• Outputs - 4
• 2/4 inputs can be analog (0-10VDC)

Lovatos micro PLC is a compact, flexible, easy to use and highly cost effective intelligent relay. Base units are available with 10,12 or 20 I/O points and can be expanded up to 44 digital I/O points with plug-in expansion modules. Programming is simple and intuitive and can be done directly with the built-in keypad/display or by personal computer with LRX SW software and LRX C03 programming USB cable.

• Two common language logics are available for programming:
• LD (relay ladder) up to 300 lines of four instructions each
• FBD (function block diagram) up to 260 programmable blocks

Key features:

Advantages:

• Quick control board installation
• Fewer number of components
• Less wiring with minor number of connections

Repetitiveness:

• Considerable time saving
• Less errors during panel building

Flexibility:

• Fast changes on control boards
• Quick correction of abnormal conditions at final testing

System control and supervision:

• • Contact status viewing in simple and small screen display
  • Possibility to add the micro PLC to equipped with LREP00 Modbus to systems integrated on data networks by using Synergy (supervision and energy management software)
