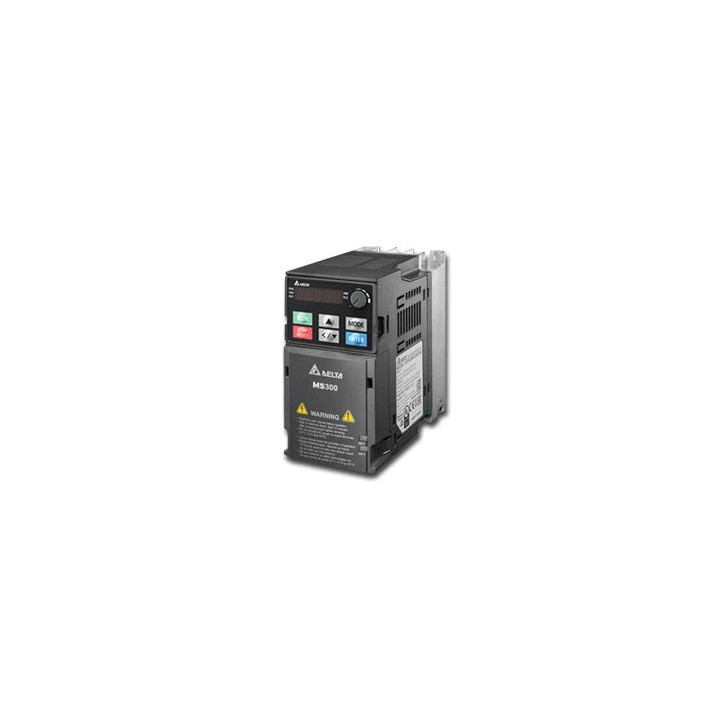

Delta VFD11AMS21ANS 2.2KW 1Phase 200-240V AC Motor Drive

VFD11AMS21ANS 2.2KW 1Phase 200-240V AC Motor Drive

Part number VFD11AMS21ANS
Delta
R8,925.48
No tax
VFD11AMS21ANS 1.5KW 1Phase 200-240V 50/60HZ AC Motor Drive (3Phase Output Voltage) Dimensions: 142(H)x72(W)x152(D)mm MS300 Series Compact Drives MS300 series drives, optimised for space utilisation with up to 40% size reduction compared to existing models. They support induction and permanent
Share
Sign in to save lists
IN STOCK at EXTERNAL supplier.
If ordered before 10AM:
DELIVERED in 3-5 business days (main centres)
or 5-7 business days (regional areas or large/heavy items)

Trade account holders pay COD and can qualify for pricing below the online store.

Request a quote Open a trade account
Secure checkout Nationwide delivery Genuine parts 011 568 9948

VFD11AMS21ANS 1.5KW 1Phase 200-240V 50/60HZ AC Motor Drive (3Phase Output Voltage)

Dimensions: 142(H)x72(W)x152(D)mm

MS300 Series Compact Drives

MS300 series drives, optimised for space utilisation with up to 40% size reduction compared to existing models. They support induction and permanent magnet motors with high-speed start-up and fast acceleration/deceleration.

  • Control method: V/F, SVC
  • Max. Output Frequency: 0 to 599.00Hz (0 to 1500Hz high-speed models)
  • Overload Tolerance:
  • Normal Duty: 120% of rated output current for 60sec, 150% for 3sec
  • Heavy Duty: 150% of rated output current for 60sec, 200% for 3sec
  • Frequency Setting: 0-+10V+10 - -10V, 4-20mA, 1pulse input/output (33KHZ)
  • Motor Protection: Overcurrent, overvoltage, over-temperature, phase failure protection
  • Built-in PLC Functionality (2K steps functionality)
  • Built-in Dynamic Braking Transistor (brake chopper)
  • Removable 5-digit LED keypad for remote operation
  • Multi-motor Control
  • Easy setup with selectable pre-loaded parameters for different applications
  • Safety standard compliance: Safe torque off (SIL2/PLd) function offers high safety machine stop
  • Built-in USB port for fast convenient tuning, parameter edit/copy, software update
  • New PCB coating
  • Built-in RS-485 communication (Profibus, DeviceNet, Modbus TCP, Ethernet/IP, CANopen

  • Brand
  • Reference
    VFD11AMS21ANS
  • In stock
    5 Items

  • Power
    2.2 kW
  • Poles
    1P
